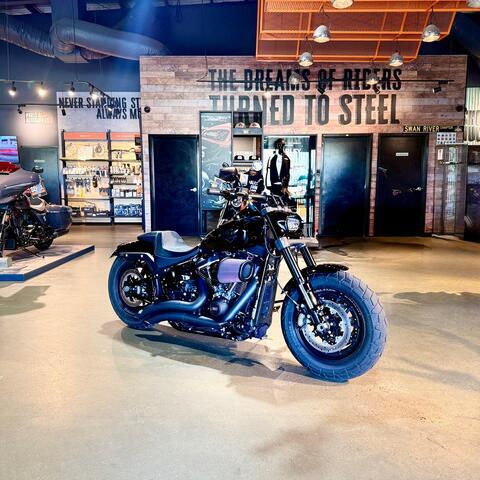

‹ Home › Inventory › 2021 Harley-Davidson® Fat Bob® 114

MY21 Harley-Davidson Softail Fat Bob SE 131 Stage IV w/ABS (FXFBS)IMMACULATE PRESENTATION AND LOADED WITH UPGRADES!! STAGE IV PERFORMANCE + CR 512 Heavy Duty Comp Ramp 525 Injectors S/S Crank APE Lifters Quick Shifter Kit Arnotts Air Ride Vance Hines Big Raduis SE Heavy Breather LED Slim Line Turn Signals Sick Tail Tidy and the List keeps going.. Experience the Dream at Harley-Davidson Perth. Western Australia's Number One Harley-Davidson Dealers. Ready to make this bike yours? Visit us at either of our two convenient locations one just a short drive down Albany Highway, another a short drive south toward Rockingham. We're not just dealers; we're your partners in the Harley-Davidson lifestyle. What Sets Us Apart: * Quality Assurance: All our Pre-Owned H-D's come workshop tested and serviced * Flexible Financing: Tailored finance and insurance options from Harley-Davidson Finance and several other lenders * Performance Tuning: Our in-house dyno and tuning team can help you get the most from your Harley-Davidson. * Certified H-D Technicians and Master Technicians. * Quality Selection: The most comprehensive range of New and Pre-owned Harley-Davidson's in Western Australia. * Fair Trade Values: Market-leading trade-in prices for all makes and models of bikes. Looking for something different? Our buying team is always expanding our range, ensuring you'll find exactly what you're seeking. Whether you're upgrading, starting fresh, or customizing your ride, we have the expertise and inventory to make it happen. Enquire today to experience the difference that Rockingham Harley-Davidson has to offer.

Specifications

Dimensions

add remove
- Length:

  2340 mm
- Seat height, unladen:

  710 mm
- Ground clearance:

  120 mm
- Rake:

  28
- Trail:

  132 mm
- Wheelbase:

  1615 mm
- Tyres, front specifications:

  150/80-16,71H,BW
- Tyres, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  13.6 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  296 kg
- Weight, in running order:

  306.63 kg
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  102 mm
- Stroke:

  114 mm
- Displacement:

  1868 cm³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  155 Nm
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  5.5 l/100 km
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO2
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Denim black, Structure cast aluminum with laser etched graphics
- Wheels, rear type:

  Denim black, Structure cast aluminum with laser etched graphics
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges:

  4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
