‹ Home › Inventory › 2023 Harley-Davidson® Low Rider® ST

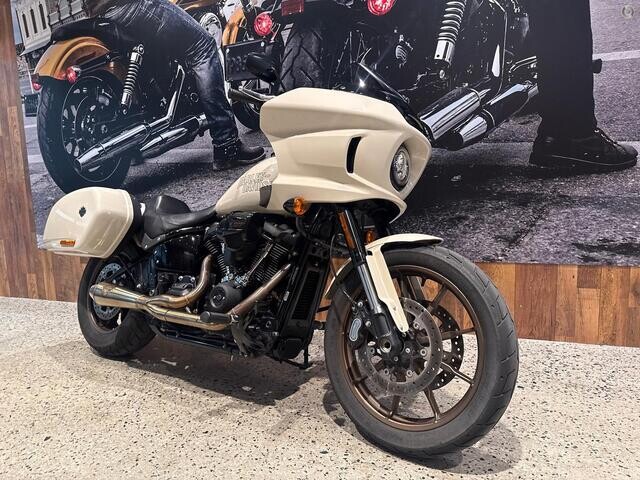

2023 Low Rider ST Finished in Stunning White Sand Pearl. * TBR 2 into 1 Performance Exhaust * Maximus Tune/ DYNO 107HP - 132TQ * Forward Controls A weekend escape machine, an American V-Twin sport-touring bike for the rider who digs clean styling and craves outrageous performance. Saddlebags Frame mounted fairing THIS IS THE RIGHT BIKE FOR Riders seeking West Coast style and unrelenting power Outrageous performance with a matching attitude FXRT devotees who want the latest riding enhancements MILWAUKEE-EIGHT? 117 V-TWIN The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 168 Nm of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle. SPORT TOURING PROFILE Lean, performance-comes-first posture with a jacked up rear suspension, high handlebars and compact removable saddlebags BLACKED OUT EVERYTHING Front end, controls, powertrain and exhaust. The only bright bits are pushrod tubes and tappet covers, and machined cylinder fins. FRAME MOUNTED FAIRING A now legendary design from that has been tailored to perfectly fit the Low Rider ST. Standard Anti-Lock Braking System (ABS) Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring LED, low beam, high beam and signature position headlight Smart Security System with proximity-based, hands-free security fob.

Specifications

Dimensions

add remove
- Length:

  2365 mm
- Seat height, unladen:

  720 mm
- Rake:

  28
- Trail:

  145 mm
- Wheelbase:

  1615 mm
- Tyres, front specifications:

  110/90B19,62H,BW
- Tyres, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  315 kg
- Weight, in running order:

  327.04 kg
- Luggage capacity – volume:

  1.9 cu ft (0.05 m³)
- Tyre, type:

  Michelin™ Scorcher™ "31" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  169 Nm
- Engine torque (RPM):

  3500
- Horsepower:

  105 HP / 78 kW @ 5020 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  5 l/100 km
- Fuel economy:

  47 mpg (5 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO₂
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals
- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
