‹ Home › Inventory › MY26 Harley-Davidson Softail Fat Boy S 117 w/ABS (FLFB) Vivid Black

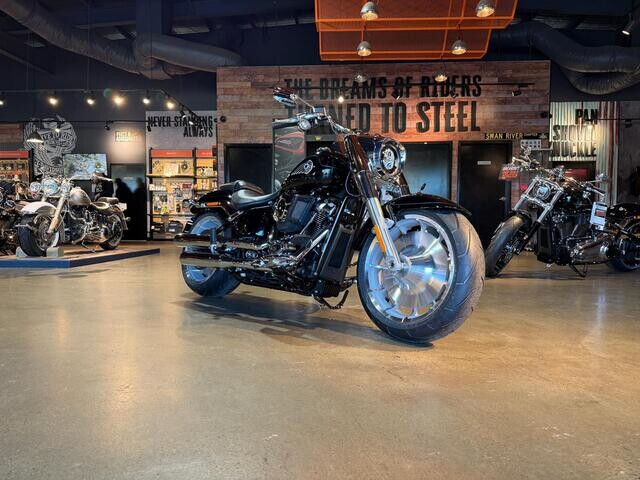

MY26 Harley-Davidson Softail Fat Boy S 117 w/ABS (FLFB) The Fat Boy is an icon a true original custom classic!! If blending in is your style the 2026 FAT BOY isn't the motorcycle for you. It's iconic chrome headlight nacelle, bold lines and one of a kind stance turn every arrival into something worth noticing. Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson's most legendary silhouettes. The 2026 Fat Boy is bold by design. Experience the Dream at Harley-Davidson in Perth. Western Australia's Number One Harley-Davidson Dealers. Ready to make this bike yours? Visit us at either of our two convenient locations one just a short drive down Albany Highway, another a short drive south towards Rockingham. We're not just dealers; we're your partners in the Harley-Davidson lifestyle. What Sets Us Apart: * Quality Assurance: All our Pre-Owned H-D's come workshop tested and serviced * Flexible Financing: Tailored finance and insurance options from Harley-Davidson Finance and several other lenders * Performance Tuning: Our in-house dyno and tuning team can help you get the most from your Harley-Davidson. * Certified H-D Technicians and Master Technicians. * Quality Selection: The most comprehensive range of New and Pre-owned Harley-Davidson's in Western Australia. * Fair Trade Values: Market-leading trade-in prices for all makes and models of bikes. Looking for something different? Our buying team is always expanding our range, ensuring you'll find exactly what you're seeking. Whether you're upgrading, starting fresh, or customizing your ride, we have the expertise and inventory to make it happen. Enquire today to experience the difference that Rockingham Harley-Davidson has to offer.

Specifications

Dimensions

add remove
- Length:

  2365 mm
- Seat height, unladen:

  675 mm
- Ground clearance:

  125 mm
- Trail:

  104 mm
- Wheelbase:

  1650 mm
- Tyres, front specifications:

  160/60R18,70V,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  303 kg
- Weight, in running order:

  314.79 kg
- Tyre, type:

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  171 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  103 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, type:

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
