‹ Home › Inventory › MY26 Harley-Davidson Softail Breakout 117 w/ABS (FXBR) Iron Horse Metallic

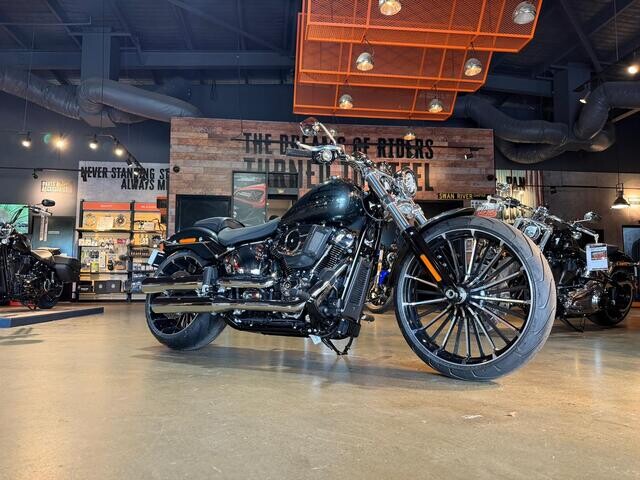

MY26 Harley-Davidson Softail Breakout 117 w/ABS (FXBR) In Stunning Iron Horse Metallic, with 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This motorcycle also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight 117 Custom, two new paint options, and much more. Experience the Dream at Harley-Davidson in Perth. Western Australia's Number One Harley-Davidson Dealers. Ready to make this bike yours? Visit us at either of our two convenient locations one just a short drive down Albany Highway, another a short drive south towards Rockingham. We're not just dealers; we're your partners in the Harley-Davidson lifestyle. What Sets Us Apart: * Quality Assurance: All our Pre-Owned H-D's come workshop tested and serviced * Flexible Financing: Tailored finance and insurance options from Harley-Davidson Finance and several other lenders * Performance Tuning: Our in-house dyno and tuning team can help you get the most from your Harley-Davidson. * Certified H-D Technicians and Master Technicians. * Quality Selection: The most comprehensive range of New and Pre-owned Harley-Davidson's in Western Australia. * Fair Trade Values: Market-leading trade-in prices for all makes and models of bikes. Looking for something different? Our buying team is always expanding our range, ensuring you'll find exactly what you're seeking. Whether you're upgrading, starting fresh, or customizing your ride, we have the expertise and inventory to make it happen. Enquire today to experience the difference that Rockingham Harley-Davidson has to offer.

Specifications

Dimensions

add remove
- Length:

  2375 mm
- Seat height, unladen:

  665 mm
- Ground clearance:

  115 mm
- Rake:

  34
- Trail:

  145 mm
- Wheelbase:

  1695 mm
- Tyres, front specifications:

  130/60B21,63H,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  297 kg
- Weight, in running order:

  308.90 kg
- Tyre, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  171 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
