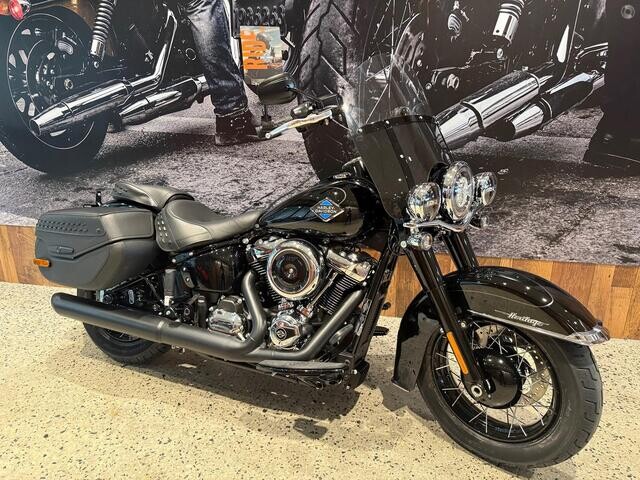

‹ Home › Inventory › MY25 Harley-Davidson Softail Heritage Classic 117 w/ABS Cruise (FLHC) Vivid Black $34,995

The quintessential American cruiser. Showstopping vintage details and pure rock and roll style. THIS IS THE RIGHT BIKE FOR Riders ready to chase excitement across state lines Highway riding with full fenders and detachable windscreen Milwaukee-Eight 117 V-Twin engine and steel laced wheels Upright riding position Floorboards Passenger seat Saddlebags Quick release windscreen MILWAUKEE-EIGHT BIG TWIN ENGINE A powerful, cool-running engine with crisp throttle response and a pure, soul-satisfying rumble. SOFTAIL FRAME The frame retains the classic Softail? lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you ve felt before. WHEELS Now Available with blacked-out, cast Annihilator wheels or new tubeless laced wheels. A DARK CLASSIC WITH MODERN EDGE Dripping with gangster-era style and vintage details. If Bonnie and Clyde rode a Harley? motorcycle, this would be the one. SIGNATURE LED FORWARD LIGHTING Darkness-defying lighting that gives you great visibility at night. LOCKABLE AND SEALED SADDLEBAGS A sleek look on the outside and

Specifications

Dimensions

add remove
- Length:

  2415 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  120 mm
- Rake:

  30
- Trail:

  140 mm
- Wheelbase:

  1630 mm
- Tyres, front specifications:

  130/90B16,73H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.2 l
- Weight, as shipped:

  316 kg
- Weight, in running order:

  330.21 kg
- Luggage capacity – volume:

  1.6 cu ft (0.045 m3)
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  163 Nm
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Black, 9-Spoke Cast Aluminum
- Wheels, rear type:

  Black, 9-Spoke Cast Aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
