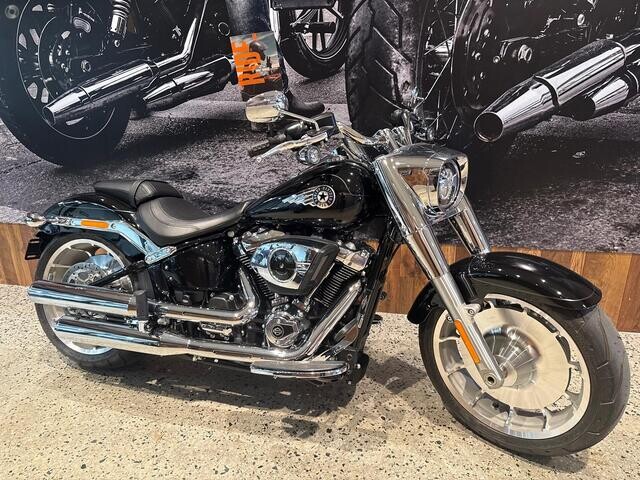

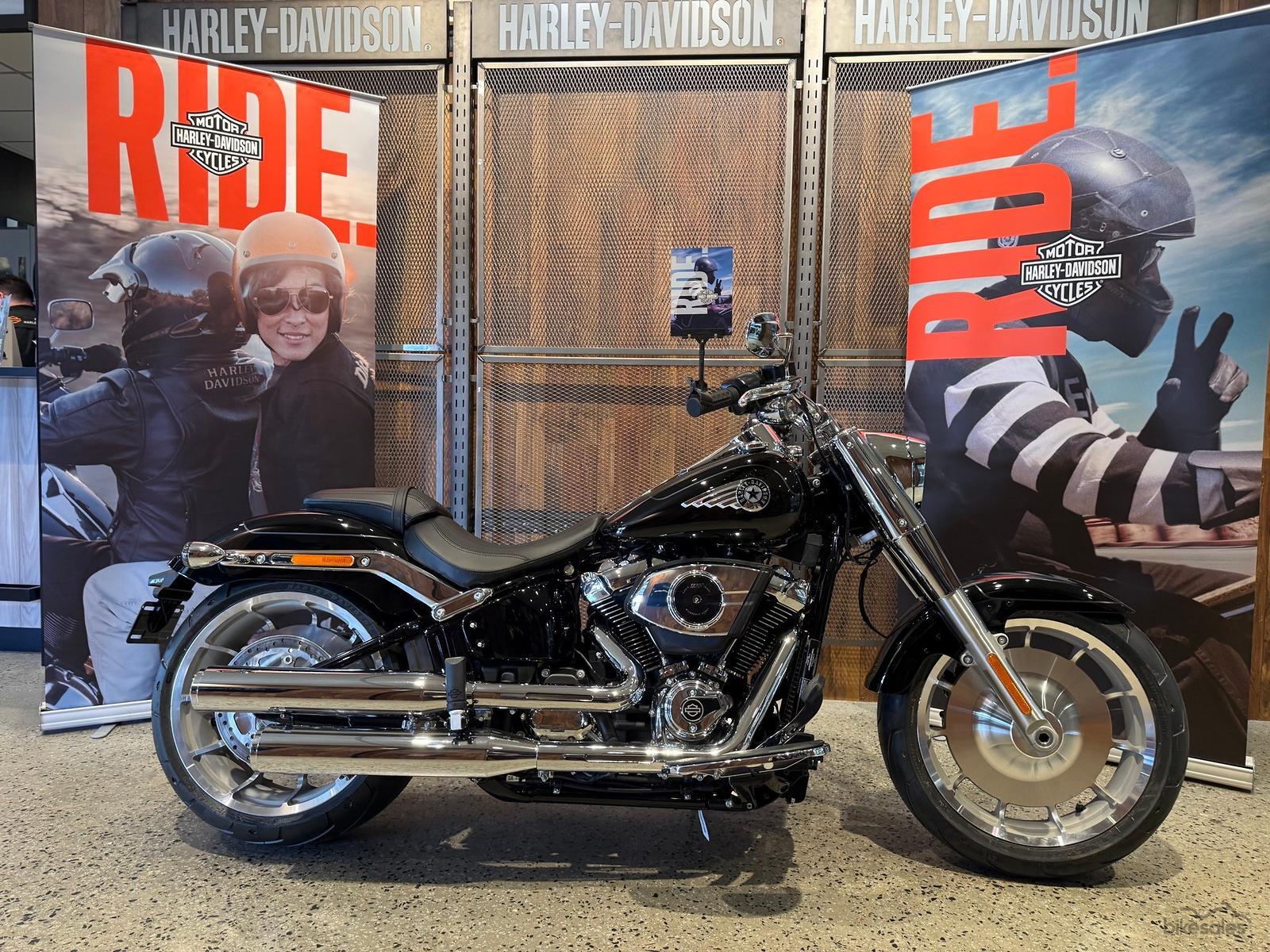

‹ Home › Inventory › MY25 Harley-Davidson Softail Fat Boy S 117 w/ABS (FLFB) Vivid Black $32,990

Fatboy The original fat custom icon, now with bright chrome finishes THIS IS THE RIGHT BIKE FOR Hot rod riders who like bright chrome and a steamroller stance Commanding the road with fat tires and a squared-up headlamp Milwaukee-Eight? 117 V-Twin engine Now with 3 ride modes to choose from. MILWAUKEE-EIGHT? BIG TWIN ENGINE A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. BRIGHT CHROME FINISHES An all-you-can eat portion of sculpted bright chrome gives the Fat Boy? motorcycle a look that?ll make a big impact. STEAMROLLER STANCE A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we?ve ever offered from the factory at 160mm combined with a rear tire at 240mm. SIGNATURE LED FORWARD LIGHTING Darkness-defying lighting that gives you great visibility at night. HIGH PERFORMANCE FRONT SUSPENSION Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics HIGH PERFORMANCE REAR MONO SHOCK Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

Specifications

Dimensions

add remove
- Length:

  2365 mm
- Seat height, unladen:

  675 mm
- Ground clearance:

  125 mm
- Trail:

  104 mm
- Wheelbase:

  1650 mm
- Tyres, front specifications:

  160/60R18,70V,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.2 l
- Weight, as shipped:

  303 kg
- Weight, in running order:

  314.79 kg
- Tyre, type:

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  171 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, type:

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
