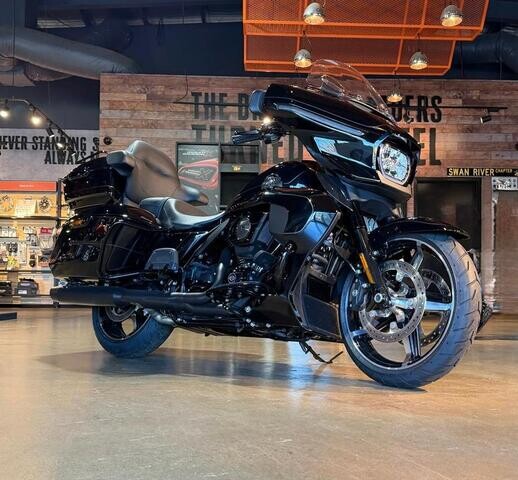

‹ Home › Inventory › MY25 Harley-Davidson Touring Street Glide Ultra 117 w/ABS Cruise (FLHXU) Vivid Black

MY25 Harley-Davidson Touring Street Glide Ultra 117 w/ABS Cruise (FLHXU) Performance bagger, loaded with premium features. THIS IS THE RIGHT BIKE FOR Riders seeking classic touring design with premium H-D features Milwaukee-Eight 117 V-Twin engine + Top Box + Upright riding position + Floorboards + Passenger seat + Saddlebags + Infotainment + Rider safety enhancements MILWAUKEE-EIGHT 117 ENGINE The most displacement in standard H-D Touring models. You get 114 cubic inches of passing and horizon-chasing power STANDARD FEATURES Latest innovation in rider connectivity, crystal clear Skyline OS 312mm touch screen colour TFT display Standard Anti-Lock Braking System (ABS) Boom! Box GTS infotainment system with color touch screen, two fairing-mount speakers and hidden radio antenna REFLEX LINKED BREMBO BRAKES WITH STANDARD ABS Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations. BOOM! BOX GTS INFOTAINMENT SYSTEM An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimised to enhance the riders interaction with the bike and connectivity with the world.

Specifications

Dimensions

add remove
- Length:

  2590 mm
- Seat height, unladen:

  725 mm
- Rake:

  26
- Trail:

  170 mm
- Wheelbase:

  1625 mm
- Tyres, front specifications:

  130/60B19 M/C 61H
- Tyres, rear specifications:

  180/55B18 M/C 80H
- Fuel capacity:

  22.7 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  377 kg
- Weight, in running order:

  392.81 kg
- Luggage capacity – volume:

  4.9 cu ft (0.139 m3)
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  176 Nm
- Engine torque (RPM):

  3250
- Horsepower:

  105 HP / 78 kW @ 4600 rpm
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  31
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  44 mpg (5.3 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Front fork:

  49mm Dual Bending Valve
- Rear shocks:

  76.2 mm Dual Outboard Emulsion with Preload Adjustability
- Wheels, front type:

  Cast aluminum
- Wheels, rear type:

  Cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear
Infotainment

add remove
- Screen size:

  12.3 in
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  50
- Speakers:

  2
- Speaker size:

  Two 5.25 in. fairing speakers
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain), Swedish
- Text-to-Speech (TTS) languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for H-D headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
