Sportster S REVOLUTIONARY POWER AND TECHNOLOGY REVOLUTION MAX 1250T The Revolution Max is a liquid-cooled powertrain with double overhead camshafts and variable valve timing: offering ample torque and an immediate powerband tuned to maximise rider control. RIDER TECHNOLOGY Choose from 3 pre-programmed Ride Modes (Sport, Road, and Rain) or create your own custom mode ? tuning your bike with a specific combination of power delivery, engine braking, Cornering Enhanced Antilock Braking System (C-ABS) and Cornering Enhanced Traction Control System (C-TCS) settings. HIGH EXHAUST MOUNT Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant 304-series stainless steel and engineered to deflect exhaust heat away from the rider?s legs and tail section. INSTRUMENTATION Everything you need to know is housed in a Bluetooth-equipped, 4? round thin-film transistor LCD display: digital gauges, indicators, ride modes, and turn-by-turn navigation with the Harley-Davidson app. All functions are accessed via buttons on the left- and right-hand controls. CHASSIS The Revolution Max 1250T is a structural component of the motorcycle chassis, eliminating a traditional frame ? which significantly reduces overall weight and keeps handling precise. This is performance you can feel, with the center of gravity low and the chassis super rigid.

Specifications

  • Dimensions
    add remove
    • Length:
      2270 mm
    • Overall width:
      840 mm
    • Seat height, unladen:
      765 mm
    • Ground clearance:
      90 mm
    • Rake:
      30
    • Trail:
      148 mm
    • Wheelbase:
      1520 mm
    • Tyres, front specifications:
      160/70TR17 73V
    • Tyres, rear specifications:
      180/70R16 77V
    • Fuel capacity:
      11.7 l
    • Oil capacity:
      4.3 l
    • Weight, as shipped:
      221 kg
    • Weight, in running order:
      227.70 kg
    • Tyre, type:
      Dunlop® Harley-Davidson Series, radial
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250T
    • Bore:
      105 mm
    • Stroke:
      72.3 mm
    • Displacement:
      1252 cm3
    • Compression ratio:
      12.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-2; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      125 Nm
    • Engine torque (RPM):
      6000
    • Horsepower:
      121 HP / 90 kW @ 7500 rpm
    • Lean angle, right (deg.):
      35
    • Lean angle, left (deg.):
      35
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      49 mpg (5.1 l/100km)
  • Drivetrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      12.21
    • Gear ratios (overall) 2nd:
      9.022
    • Gear ratios (overall) 3rd:
      6.994
    • Gear ratios (overall) 4th:
      5.641
    • Gear ratios (overall) 5th:
      4.731
    • Gear Ratios (overall) 6th:
      4.131
  • Chassis
    add remove
    • Front fork:
      43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Screen size:
      4 in
    • Type:
      Color TFT
    • Headset specifications (if equipped):
      Bluetooth
    • Languages:
      Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Prices are including government charges. Stock may be located at a different location, please enquire to ensure the stock is available for viewing.

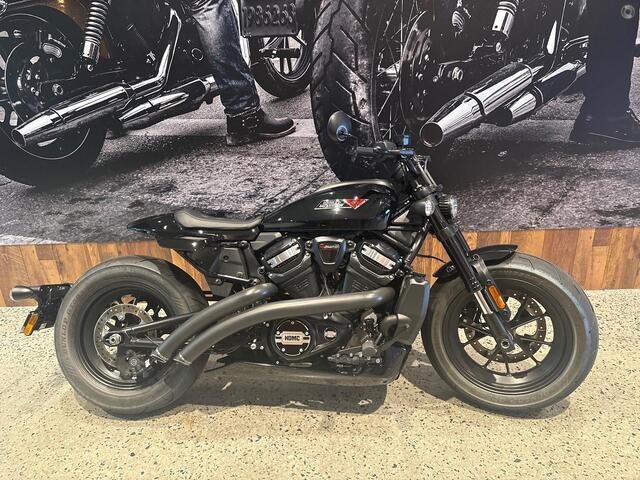

2025 Harley-Davidson® Sportster™ S
