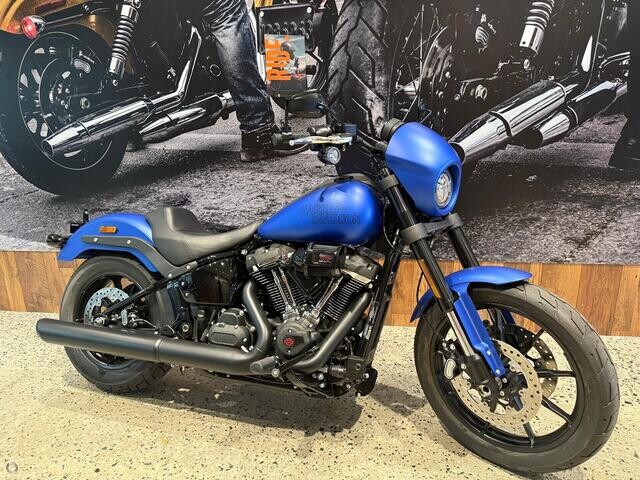

Low Rider S A blacked-out, factory custom performance cruiser. Upright riding position Mid-mount foot controls Screen POWERTRAIN Milwaukee-Eight? 117 V-Twin. High-performance engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson? powertrain. And if thats not enough, boost performance further with Dealer-installed Screamin Eagle Performance Parts Stage Upgrades from Harley-Davidson Genuine Motor Parts & Accessories. THIS IS THE RIGHT BIKE FOR Rebels seeking a now classic West Coast style Aggressive riding with sport bike agility and handling Milwaukee-Eight 117 engine and moto-style drag bars West Coast Styling BLACKED OUT WITH SOLO SEAT The powertrain, primary cover, triple clamps, top clamp, rear fender supports and tank console are finished in Wrinkle Black; the derby cover, intake, lower rocker covers and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. An everything black overload, paired with a deep solo seat for lone-wolf attitude. HANDLEBARS One-inch moto handlebar mounted on four-inch risers gives the overall look of the bike a Coastal style element that puts the rider in an aggressive posture on the bike. CONSOLE Low-profile textured black tank console with FXLRS badge covers the fuel tank weld and replaces the console with gauges used on Low Rider S 117 model.

Specifications

Dimensions

add remove
- Length:

  2360 mm
- Seat height, unladen:

  715 mm
- Rake:

  28
- Trail:

  145 mm
- Wheelbase:

  1615 mm
- Tyres, front specifications:

  110/90B19,62H,BW
- Tyres, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  292 kg
- Weight, in running order:

  303.91 kg
- Tyre, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  174 Nm
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Black, Radiate Cast Aluminum
- Wheels, rear type:

  Black, Radiate Cast Aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
