‹ Home › Inventory › MY26 Harley-Davidson Softail Breakout 117 w/ABS (FXBR) TEAL THUNDER

Sold

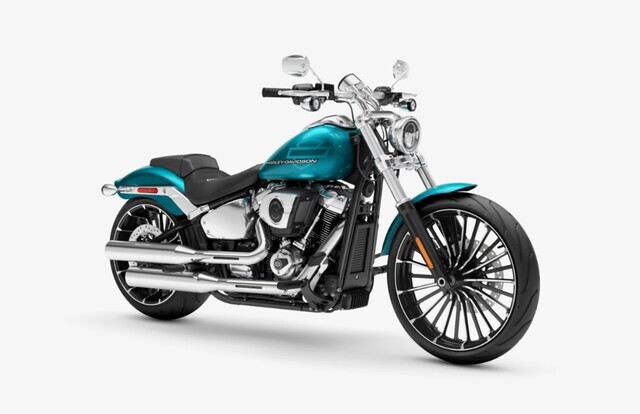

MY26 Harley-Davidson Softail Breakout 117 w/ABS (FXBR) THE ALL NEW 2026 H-D LINEUP IS HERE AND THE COLOURS ARE VIBRANT, REFRESHING AND BRILLIANT! Long, lean and mean. A muscular modern chopper that turns stoplights into drag strips. Relaxed riding position Forward foot controls Passenger seat Low THIS IS THE RIGHT BIKE FOR; Riders looking for head-turning style and performance Blasting through the city and block-beating passing power Riders seeking Milwaukee-Eight? 117 V-Twin and sharp handling Now with 3 ride modes to choose from. MILWAUKEE-EIGHT? 117 ENGINE Loads of torque for blasting off from stoplights, hitting entrance ramps and rolling on the passing power. Pure sound with a soul-satisfying rumble. SOFTAIL? FRAME The frame retains the classic Softail? lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you?ve felt before. HIGH PERFORMANCE FRONT SUSPENSION Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics. HIGH PERFORMANCE REAR MONO SHOCK Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look

Specifications

Dimensions

add remove
- Length:

  2375 mm
- Seat height, unladen:

  665 mm
- Ground clearance:

  115 mm
- Rake:

  34
- Trail:

  145 mm
- Wheelbase:

  1695 mm
- Tyres, front specifications:

  130/60B21,63H,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  297 kg
- Weight, in running order:

  308.90 kg
- Tyre, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  171 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
